Distributore LioN-Classic interfaccia ad infrarossi 4DI sensori a 2 o 3 conduttori 4DO (8x M12) Plastic 60 mm
Distributore LioN-Classic interfaccia ad infrarossi 4DI sensori a 2 o 3 conduttori 4DO (8x M12) Plastic 60 mm
Download datasheet

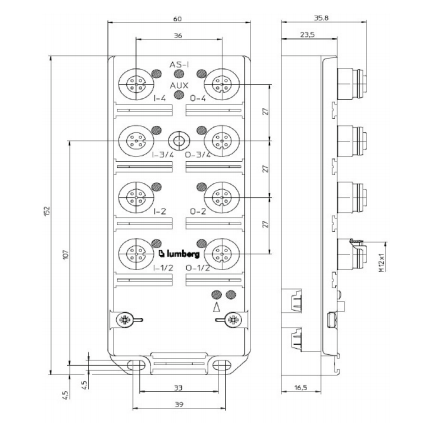

0910 ASL 438 – LioN-Classic, AS-Interface flat cable module with 4 digital inputs for 2-wire or 3-wire sensors and 4 digital outputs to connect standard actuators, combined FIXCON/M12 socket, infrared interface for the addressing, Plastic, 60 mm
Descrizione
Technnical data
Environmental
Degree of protection IP 67
Temperature range -25°C / +80°C
Weight 300 g
Housing PUR
Bus System AS-Interface V3.0
AS-Interface profile S 7.A.7
I/O configuration 7 hex
ID code A hex
ID2 code (extended ID-code) 7 hex
Support A/B addressing yes
Electronics Power Supply AS-Interface
Rated voltage AS-Interface net
Voltage range 26.5–31.6 V DC
Power consumption max. 250 mA
Reverse polarity protection yes
Indication LED green
Input Power Supply
Voltage range (AS-Interface net) 17-30 V
Total current of all sensors max. 250 mA
Short circuit-proof yes
Inputs Type 2 acc. to IEC 61131-2
Rated input voltage 2 24 V DC
Signal state “1” Us>11 V / Is > 6 mA
Signal state “0” Is < 2 mA
Input current at 24 V 15 mA
Input circuit p-switching
Number of digital channels 4
Channel status indicator LED yellow per channel
Output Power Supply AUX
Rated voltage 24 V DC
Voltage range 10–30 V
Potential separation present
Reverse polarity protection yes/electronic
Indication LED green
