Elettrovalvola cablare femmina forma A G1/2" nero
Elettrovalvola cablare femmina forma A G1/2″ nero
Download datasheet

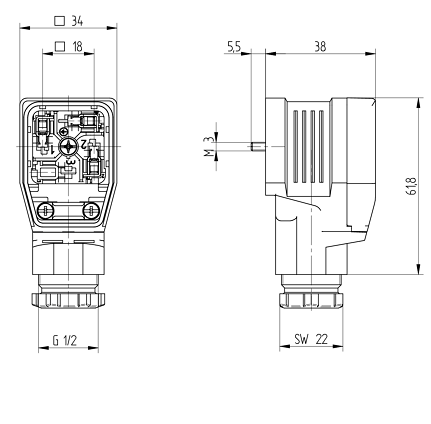

GDME 2014 black GDME Heavy Duty DIN Standard Field Attachable Connector: Form A, 3-pin (2+1PE; PE across cable outlet), black housing with transparent cover, screw type, G1/2″; without circuitry, 230 V DC / 400 V AC AC/DC, 16 A
Descrizione

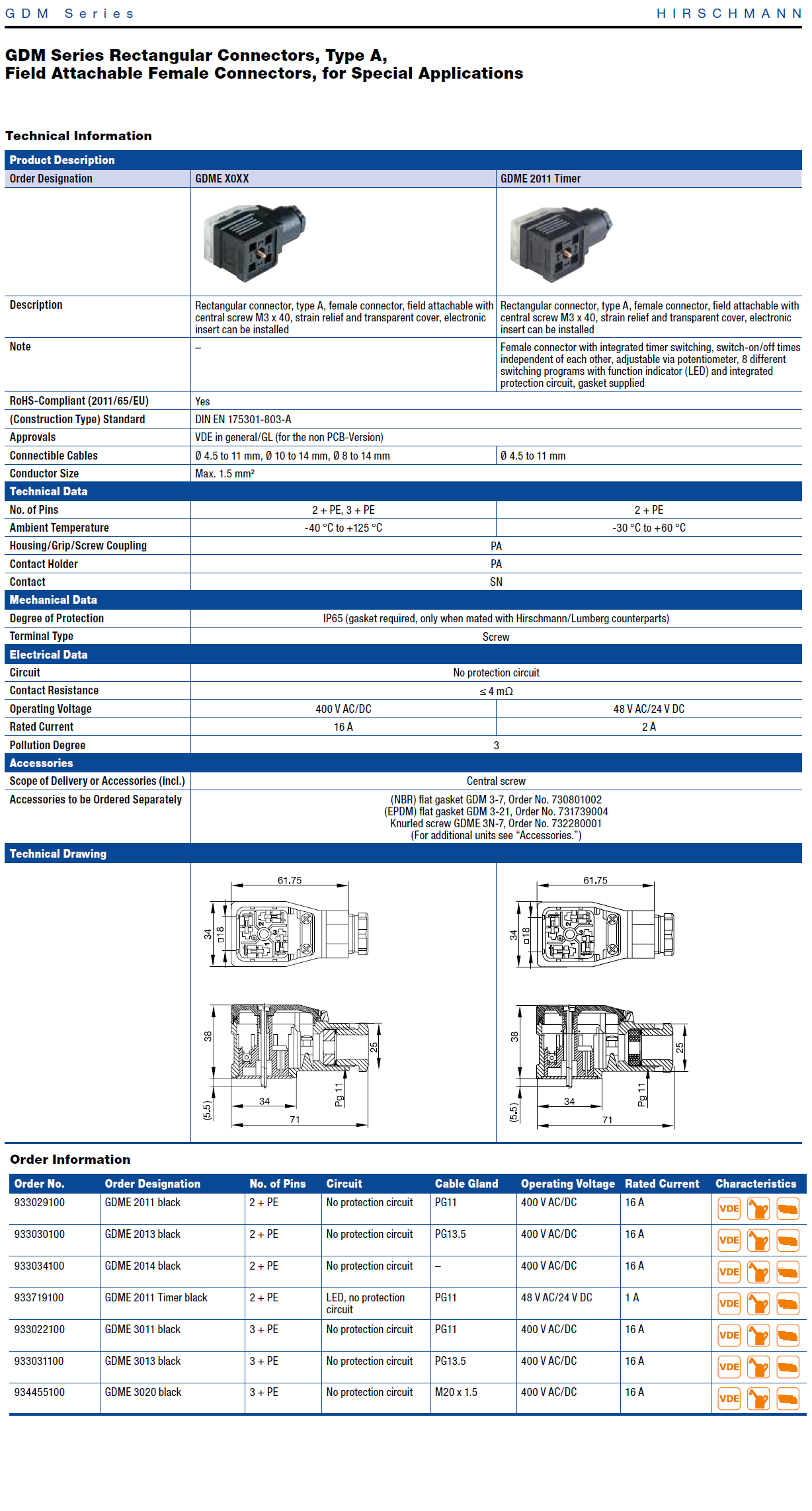

GDM Series Rectangular Connectors, Type A, Field Attachable Female Connectors, for Special Applications

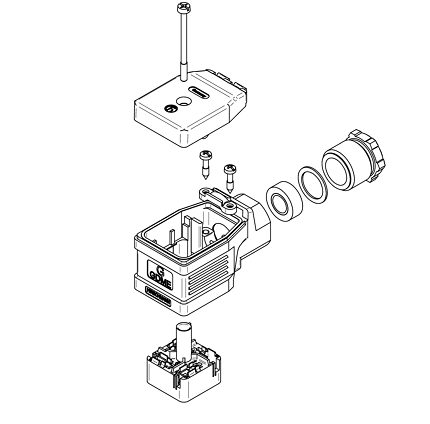

GDME X0XX: Rectangular connector, type A, female connector, field attachable with central screw M3 x 40, strain relief and transparent cover, electronic insert can be installed
GDME 2011 Timer: Rectangular connector, type A, female connector, field attachable with central screw M3 x 40, strain relief and transparent cover, electronic insert can be installed
Note: Female connector with integrated timer switching, switch-on/off times independent of each other, adjustable via potentiometer, 8 different switching programs with function indicator (LED) and integrated protection circuit, gasket supplied
(Construction Type) Standard DIN EN 175301-803-A
Approvals VDE in general/GL (for the non PCB-Version)
Connectible Cables
GDME X0XX: Ø 4.5 to 11 mm, Ø 10 to 14 mm, Ø 8 to 14 mm
GDME 2011 Timer: Ø 4.5 to 11 mm
Conductor Size Max. 1.5 mm²
Technical Data
No. of Pins
GDME X0XX: 2 + PE, 3 + PE
Ambient Temperature -40 °C to +125 °C
GDME 2011 Timer: 2 + PE
Ambient Temperature: -30 °C to +60 °C
Electrical Data
IP65 (gasket required, only when mated with Hirschmann/Lumberg counterparts)
Terminal Type Screw
Electrical Data
Circuit No protection circuit
Contact Resistance ≤ 4 mΩ
Operating Voltage:
GDME X0XX: 400 V AC/DC
Rated Current 16 A
GDME 2011 Timer: 48 V AC/24 V DC
Rated Current 2 A
