Elettrovalvola femmina forma A Led giallo con varistore PVC grigio

    Richiesta informazioni

    Compila il form e invia una richiesta su questo prodotto





    Elettrovalvola femmina forma A Led giallo con varistore PVC grigio




    Download datasheet
    GAN21LU-V2Y-609 GAN DIN Standard Single-Ended Cordset: Form A, 3-pin (2+1PE; PE across cable outlet), grey translucent body, with varistor and yellow LED, 230 V AC/DC, 10 A; PVC grey cable, 0.75 mm²
    Download datasheet
    GAN22LU-V21-609 GAN DIN Standard Single-Ended Cordset: Form A, 3-pin (2+2PE), grey translucent body, with varistor and yellow LED, 110 V AC/DC, 10 A; PVC grey cable, 0.75 mm²
    Download datasheet
    GAN22LU-V24-609 GAN DIN Standard Single-Ended Cordset: Form A, 3-pin (2+2PE), grey translucent body, with varistor and yellow LED, 24 V AC/DC, 10 A; PVC grey cable, 0.75 mm²
    Download datasheet
    GAN22LU-V2Y-609 GAN DIN Standard Single-Ended Cordset: Form A, 3-pin (2+2PE), grey translucent body, with varistor and yellow LED, 230 V AC/DC, 10 A; PVC grey cable, 0.75 mm²

    CONDIVIDI / SHARE

    Descrizione

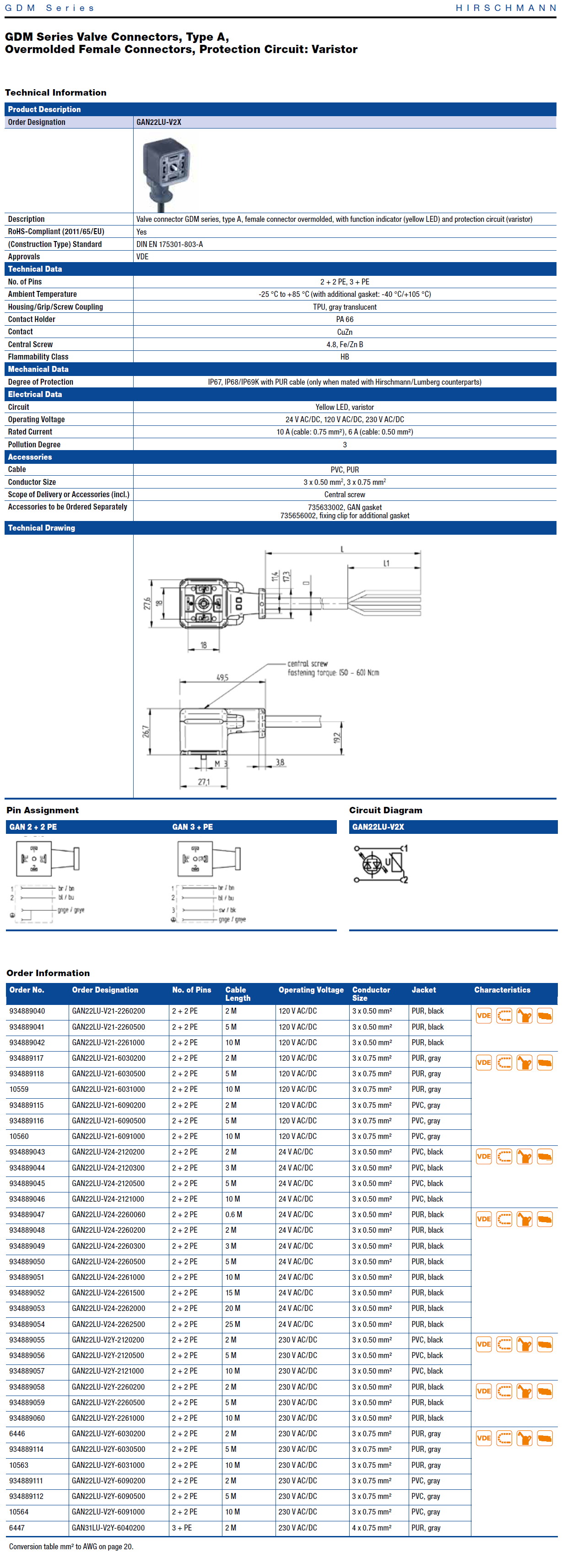

    GDM Series Valve Connectors, Type A, Overmolded Female Connectors, Protection Circuit: Varistor

    GAN22LU-V2X: Valve connector GDM series, type A, female connector overmolded, with function indicator (yellow LED) and protection circuit (varistor)

    Standard DIN EN 175301-803-A
    Technical Data
    No. of Pins 2 + 2 PE, 3 + PE
    Ambient Temperature -25 °C to +85 °C (with additional gasket: -40 °C/+105 °C)
    Housing/Grip/Screw Coupling TPU, gray translucent
    Degree of Protection IP67, IP68/IP69K with PUR cable (only when mated with Hirschmann/Lumberg counterparts)
    Electrical Data
    Circuit Yellow LED, varistor
    Operating Voltage 24 V AC/DC, 120 V AC/DC, 230 V AC/DC
    Rated Current 10 A (cable: 0.75 mm²), 6 A (cable: 0.50 mm²)
