M12 Power pannello femmina L-coded 16A
M12 Power pannello femmina L-coded 16A
Download datasheet

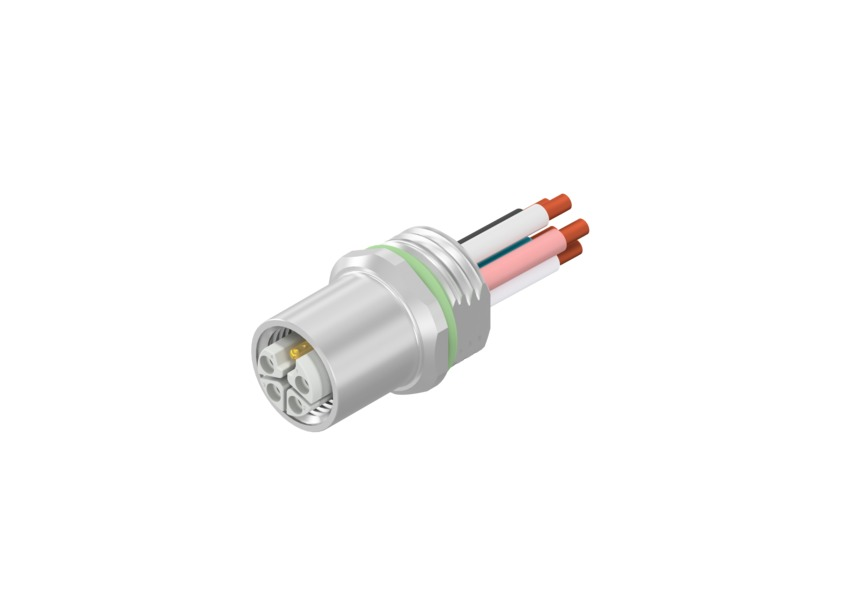

43-03870 SAL-12L-FK4-0,5 M12 L-coded female axial M16x1,5mm 4 pos. front panel mounting, wire termination, 0,5 m
Download datasheet
43-03263 SAL-12L-FK4FE-0,5 M12 L-coded female axial M16x1,5mm 4+FE pos. front panel mounting, wire termination, 0,5 m
Descrizione
General Data
Product type Power connectors
Style Sockets
Size A-side M12x1
Design Sockets
Size/Number of positions 4-pos/4-pos+FE
Coding L-coded
Type A-side [ Female, Male] Female connector axial
IP range A-side IP67
Mounting options [e.g. front/back panel mounting etc.] Front panel mounting
Screw connection [e.g. PG9, M16 etc.] M12x1
Length cable/wire 0,5 m
Technical Data
Working voltage signal 63 V
Current rating signal 16 A
min. working temperature -10° C
max. working temperature +85° C
Shielding Unshielded
Cable quality [e.g. PP, PVC, TPE etc.] PVC
Wire cross section AWG14
