Descrizione

General Data

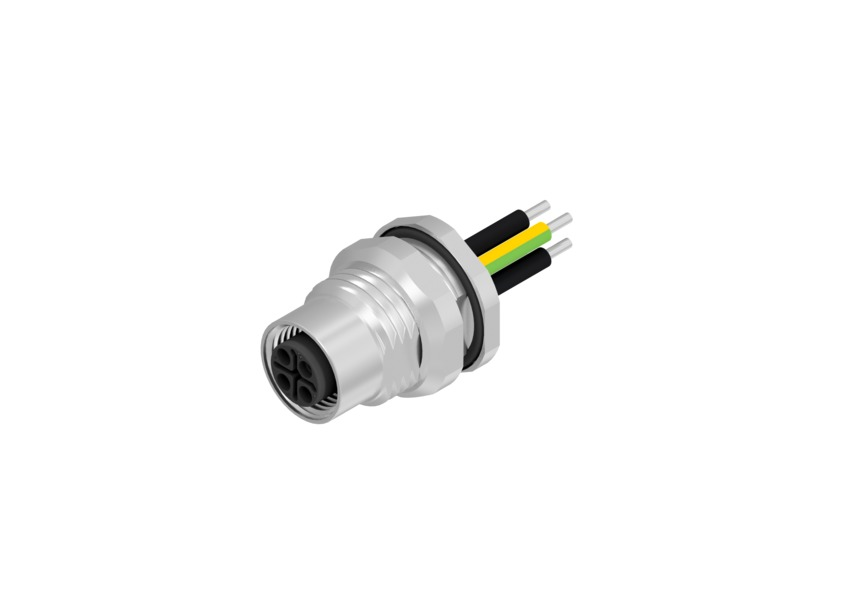

Size A-side M12x1
Design Sockets
Type A-side [ Female, Male] Female connector axial
Length cable/wire 0,5 m
Contact type Female connector axial
Coding S-coded
Mounting options [e.g. front/back panel mounting etc.] Back panel mounting
Locking type Thread fixed
Termination signal [e.g. clamp, crimp, solder, SMT] Wire
Screw connection [e.g. PG9, M16 etc.] M16x1,5
Style Sockets
Technical Data
Shielding Unshielded
Wire cross section 1,5 mm²
min. working temperature -30° C
max. working temperature +85° C
Working voltage signal 630 V
IP rating IP67
Current rating signal 12 A
Mating cycles >=100
Wire isolation material PVC
Recommended torque 0,6 Nm
Insulation resistance >=100M Ohm
Material Data
Insulator material PA 6.6 UL 94 V-0, black
Insulator color Black
Housing material Brass
Housing color Nickel
Signal contact material Copper alloy
Plating signal contact (mating area) Gold over nickel
